KOBELCO SK330 OEM Excavator Carrier Roller with 12-18 Months Warranty and ISO9001 SGS Certified

KOBELCO SK330 OEM Excavator Carrier Roller with 12-18 Months Warranty and ISO9001 SGS Certified

Datos del producto:
Lugar de origen:	China (continente)
Nombre de la marca:	YT
Número de modelo:	SK330
Pago y Envío Términos:
Cantidad de orden mínima:	1 PCS
Precio:	negotiable
Detalles de empaquetado:	Embalaje de exportación estándar
Tiempo de entrega:	7-30 días
Condiciones de pago:	L/C, T/T
Capacidad de la fuente:	10000 pcs/mes

Contactar ahora

Información detallada
Material:	40Mn2,40MnB,50Mn	Técnica:	Falsificación/casting
Calidad:	Tratamiento térmico HRC 40-55	Color:	Amarillo o Negro o requerido por el cliente
Tiempo de garantía:	12 a 18 meses	Certificación:	ISO9001: 2000, SGS
Condición:	Nuevo	Paquete de transporte:	caja/paleta de madera
Resaltar:	KOBELCO SK330 OEM Excavator Carrier Roller , 12-18 Months Warranty Excavator Carrier Roller , ISO9001 SGS Certified Excavator Carrier Roller

Descripción de producto

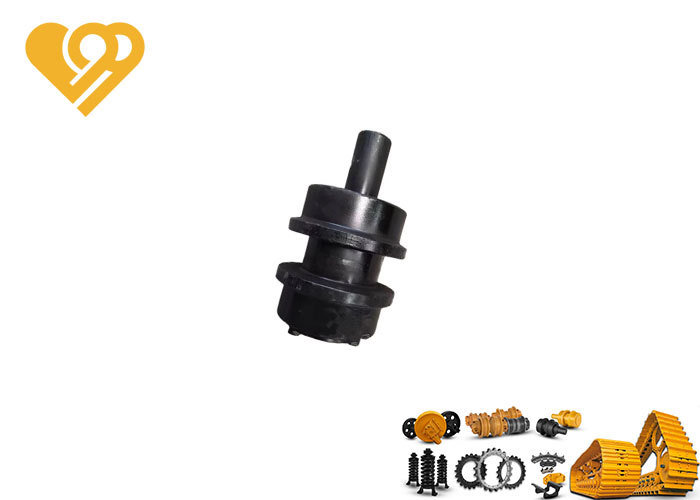

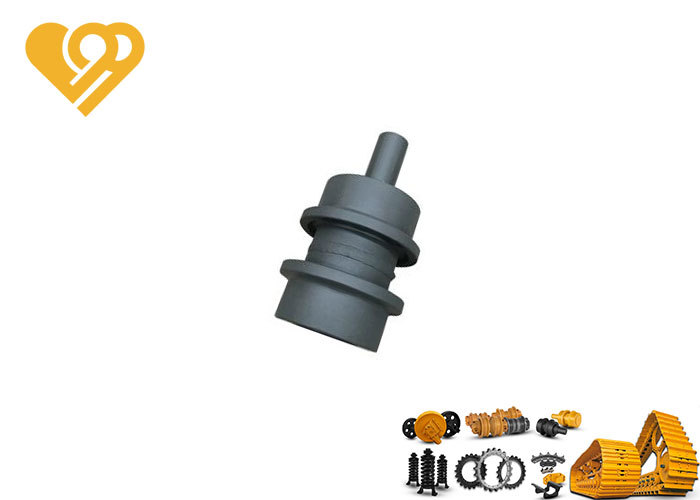

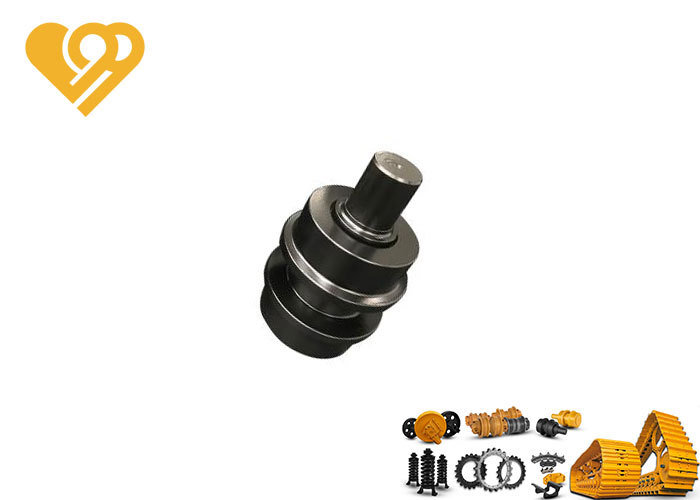

KOBELCO Excavator Undercarriage Spare Parts High Duty Customized Color Top Roller - SK330 OEM Carrier Support Roller

What is a roller?

The roller is a crucial component of belt conveyors, available in steel and plastic varieties. It supports both the conveyor belt and material weight, representing 35% of total conveyor cost while generating over 70% of system resistance.

Materials: 40Mn2, 40MnB, or 50Mn depending on working conditions
Heat treatment achieves surface hardness of HRC52-56 with 7-10mm hardened layer depth
High-quality floating seals and lubrication system adapt to temperatures from -45°C to 120°C
Designed for maintenance-free operation under severe conditions

Carrier Rollers Excavator Advantages

Hardening and tempering process ensures exceptional strength and wear resistance
HRC52-56 surface hardness minimizes wear and extends product lifespan
Precision engineered for accurate installation and heavy load capacity (up to 50 tons)
High cost-effectiveness with superior service support

Main Dimensions of Installation
