Inicio Productosrodillos inferiores de la pistaDAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material

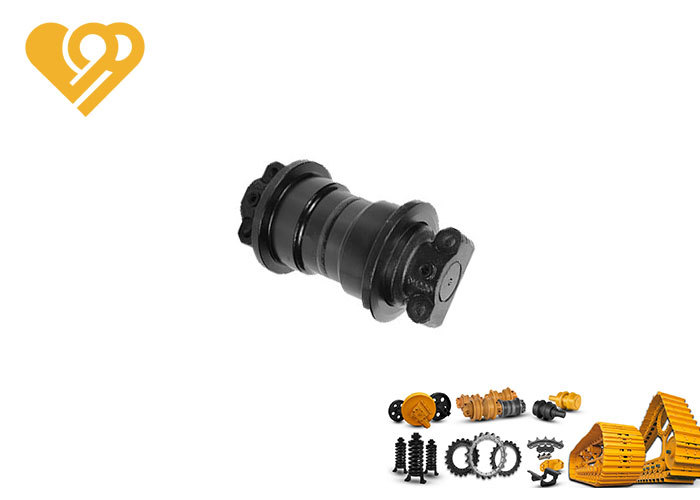

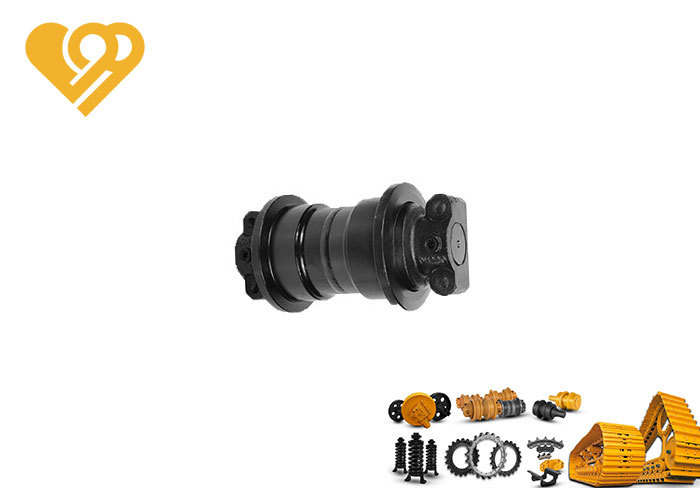

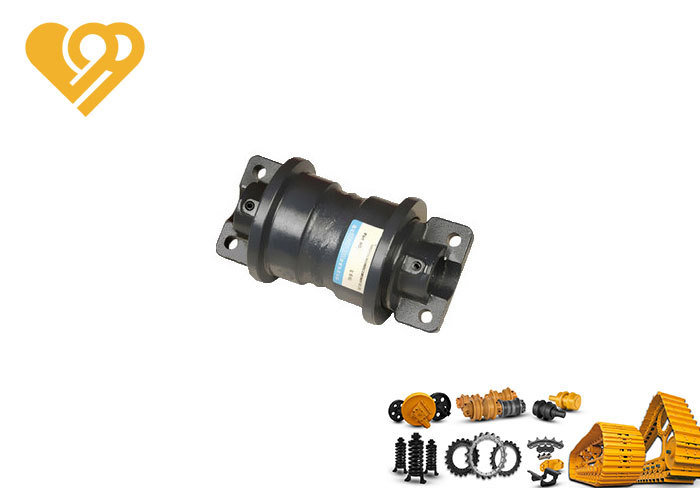

DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material

DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material

Datos del producto:
Lugar de origen: China (continente)
Nombre de la marca: YT
Número de modelo: DH55 DH130 DH220
Pago y Envío Términos:
Cantidad de orden mínima: 1 por ciento
Precio: negotiable
Detalles de empaquetado: Envasado de exportación
Tiempo de entrega: 7-30 días
Condiciones de pago: L/C, T/T
Capacidad de la fuente: 10000 pcs/mes
Contactar ahora

Información detallada
Material: 40mn2、40mnb 、 50mn Técnica: Falsificación/casting
Color: Amarillo o Negro o requerido por el cliente Envío: Por vía aérea, marítima y expreso
Dureza de la superficie: HRC52-58 Certificación: ISO9001: 2000
Peso: Opcional Profundidad de dureza: 8-12 mm
Resaltar:

Surface Hardness HRC52-58 Excavator Track Roller

,

Hardness Depth 8-12mm Bottom Track Roller

,

40Mn2/40MnB/50Mn Undercarriage Roller

Descripción de producto

Earthmoving Excavator Undercarriage Spare Parts DAEWOO DH55 DH130 DH220 Bottom Track Roller
About Track Rollers
The roller is a critical component of belt conveyors, supporting both the conveyor belt and material weight. Accounting for 35% of total conveyor cost and generating over 70% of system resistance, roller quality significantly impacts performance.
Material & Construction
  • Materials: 40Mn2, 40MnB, or 50Mn steel selected based on working conditions
  • Precision forging with normalization before heat treatment
  • Surface hardness HRC52-60 with hardened layer depth of 7-10mm (HRC45)
  • High-quality floating seals and lubrication system for -45℃ to 120℃ operation
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material 0
Key Features
  • Quench-tempering process for superior mechanical properties and wear resistance
  • Surface hardness HRC40-55 reduces wear and extends service life
  • Precision engineered components with lifetime sealing system
  • Forged shells resist bell mouthing deformation
Installation Dimensions
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material 1
Brand Model A B E G M L
DAEWOO DH55 130 110 130 251 218 15.5
DH130 160 135 184 285 250 17.5
DH220 185 150 220 356 320 18
DH300 205 168 262 412 368 22
Note: Additional models available upon request. Contact us with your specific requirements.
Performance Advantages
  • Suitable for 3-50 ton excavators and special machinery
  • Double conical sealing with lifelong lubrication design
  • Hot-forged shells with superior internal material structure
  • Advanced heat treatment for crack resistance
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material 2
Our Manufacturing Advantages
  • World-class quality standards
  • Factory-direct pricing
  • 35 years of specialized experience
  • Flexible payment options (T/T, L/C)
  • 30-day delivery guarantee
  • Professional technical support and logistics guidance
  • Comprehensive after-sales service including 24/7 support
